Pulley, Idler: Removal: 3.6L
WARNING: This page is about a different variant/trim than selected.
NOTE:

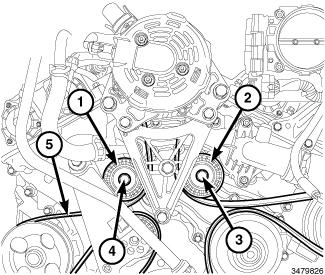

The bolts used to fasten the idler pulleys to the engine are different lengths. The left side idler bolt (3) is longer than the right side idler bolt (4).
- Remove accessory drive belt and position aside.
- Remove the bolt (3 and 4) from its respective idler pulley (1 and 2).
- Remove the idler from the engine.
