Pulley, Idler: Removal: 2.8L

WARNING: This page is about a different variant/trim than selected.

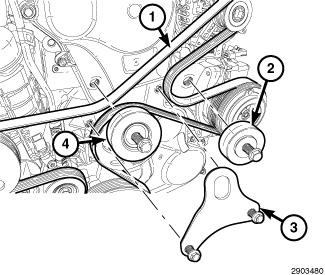

Fig 1: Drive Belt, Lifting Bracket, Idler Pulley & Bolt
GC0148194Courtesy of CHRYSLER GROUP, LLC
CAUTION:

The retaining bolts on the idler pulleys are left hand thread.

  1. Disconnect negative battery cable.
  2. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL .
  3. Remove bolt and the upper idler pulley (4).
  4. Remove bolt and the lower idler pulley (2).
