Belt, Serpentine: Installation: 2.8L

WARNING: This page is about a different variant/trim than selected.

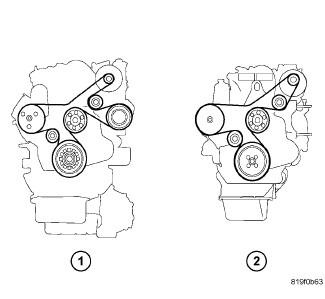

Fig 1: Identifying Drive Belt

Courtesy of CHRYSLER GROUP, LLC

1 - WITH A/C

2 - WITHOUT A/C

Check condition of all pulleys.
Install accessory drive belt. Route the belt around all pulleys (1 or 2).

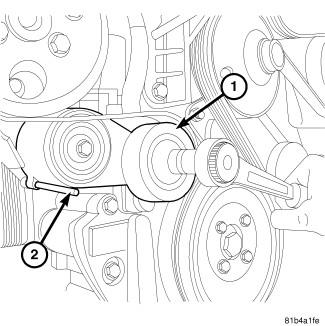

Fig 2: Drive Pin & Tensioner
Courtesy of CHRYSLER GROUP, LLC
Using a suitable tool, to hold accessory drive belt tensioner (1) and remove the pin (2).
Make sure the belt is seated onto all pulleys.
Slowly rotate and release the tensioner (1).

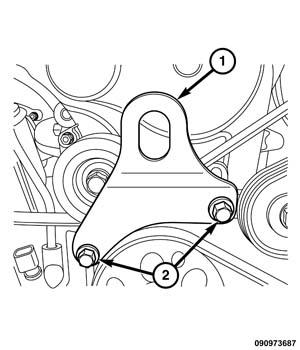

Fig 3: Engine Lifting Bracket & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the engine lifting bracket (1). Tighten bolts (2) to 68 N.m (50 ft. lbs.).
Connect the negative battery cable.
