No Response From HSM (Heated Seat Module): Notes

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to  SYSTEM WIRING DIAGRAMS  article  .

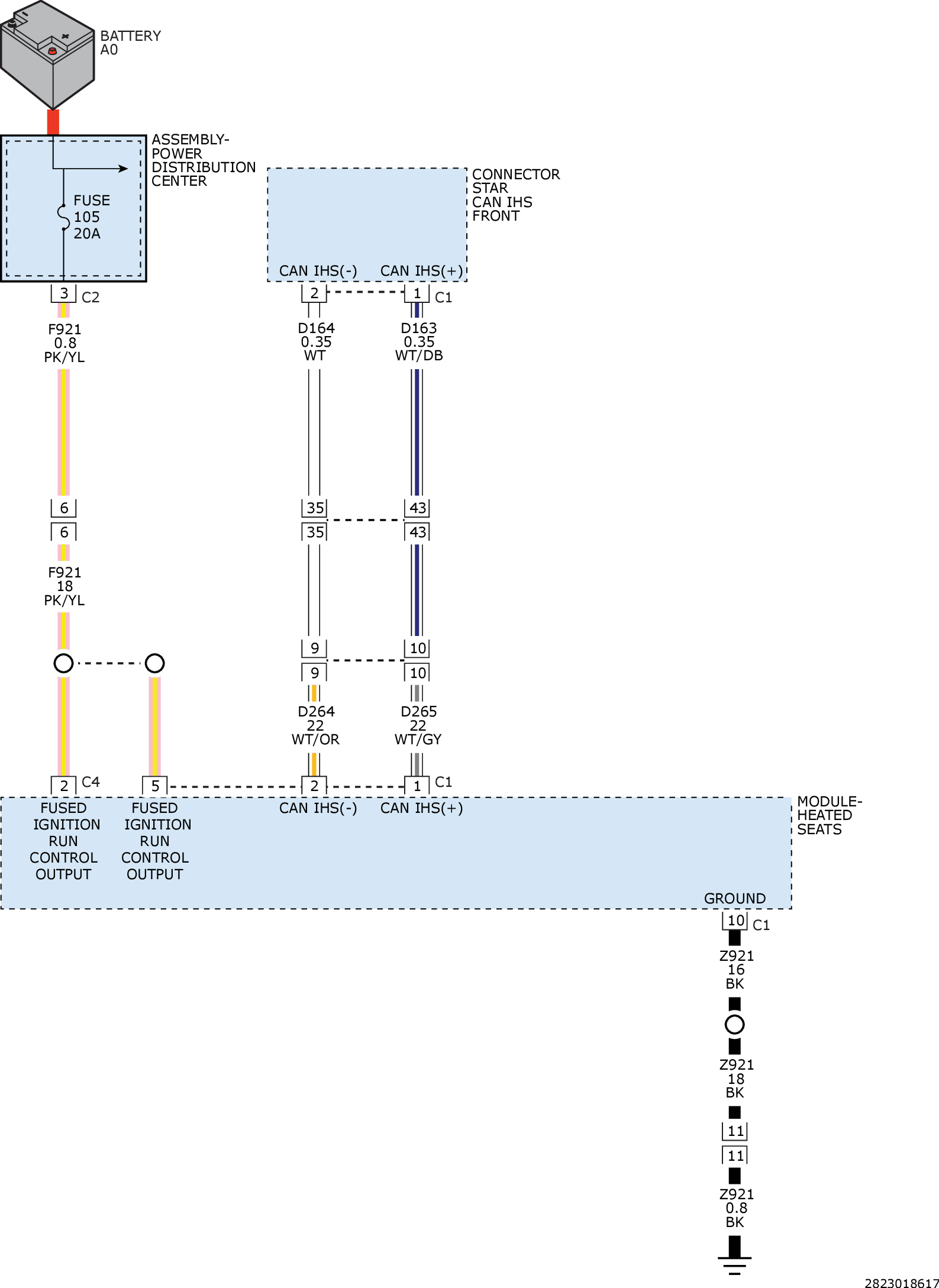

Fig 1: Heated Seat Module Battery Voltage Circuit Diagram
GC0160826Courtesy of CHRYSLER GROUP, LLC
