Section 94 (Audio/Video/Entertainment/Connectivity (Service Information)): Speaker: Removal: Subwoofer
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.

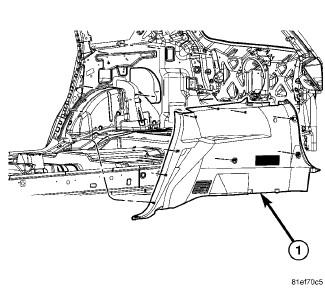

- Remove the left rear quarter trim panel (1). Refer to PANEL, QUARTER TRIM, REMOVAL .

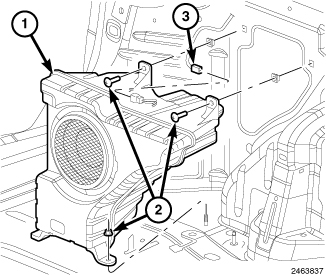

- Remove the subwoofer mounting fasteners (2).
- Disconnect the electrical connectors (3) and remove the subwoofer (1) from the vehicle.
