Nozzle, Washer: Installation: Headlamp

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Take proper precautions to ensure there is no cosmetic damage done to the paint finish of the headlamp washer nozzle bezel or the front fascia during the following procedure.

Fig 1: Removing/Installing Hose AT Headlamp Washer Nozzle Nipple

Courtesy of CHRYSLER GROUP, LLC

Pull the washer nozzle supply hose (1) quick connect fitting (4) out through the mounting hole of the front fascia far enough to seat the molded plastic lock (2) onto the fitting.
Push the quick connect fitting onto the headlamp washer nozzle nipple (3) until it snaps into place with an audible click.

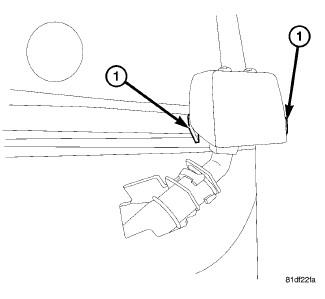

Fig 2: Integral Latches Of Washer Nozzle Bezel
Courtesy of CHRYSLER GROUP, LLC
Position the headlamp washer nozzle into the mounting hole in the front fascia.
Align the washer nozzle bezel with the mounting hole in the front fascia.
Using hand pressure, push the bezel down into the fascia mounting hole until both bezel latch features are fully engaged on the back side of the fascia.
Reach up behind the front fascia to access and remove the clamp from the washer supply hose.
Reinstall the push pin retainers that secure the lower front edge of the front wheel house splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
