Motor, Wiper: Installation: Rear
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

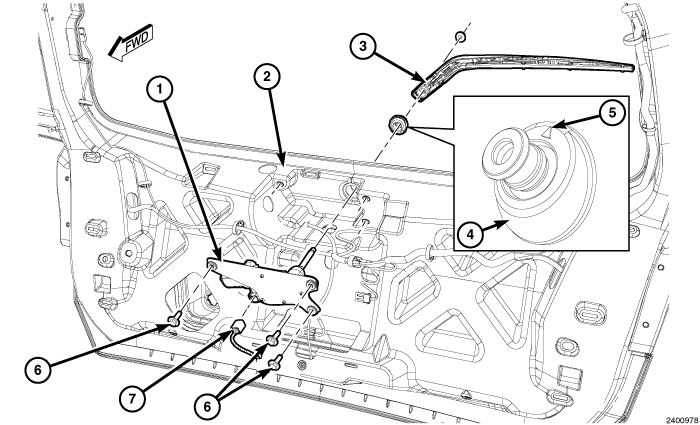

Fig 1: Rear Wiper Motor, Liftgate Inner Panel, Rear Wiper Arm, Grommet, Output Shaft Bezel, Screws & Wire Harness Connector
- If the output shaft bezel and grommet (4) were removed from the outside of the liftgate, install the rubber bezel and grommet into the clearance hole of the liftgate outer panel. Be certain the arrow (5) molded onto the grommet is oriented upward.
- Position the rear wiper motor and bracket unit (1) onto the liftgate inner panel (2) as a unit.
- Install and tighten the three screws (6) that secure the mounting bracket to the liftgate. Tighten the screws to 3 N.m (27 in. lbs.).
- Reconnect the wire harness connector (7) to the motor connector receptacle.
- Reinstall the trim panel onto the liftgate inner panel. Refer to PANEL, TRIM, LIFTGATE, INSTALLATION .
- Reinstall the rear wiper arm (3) onto the output shaft. Refer to ARM, WIPER, INSTALLATION .
- Reconnect the negative cable to the battery.
