Pan, Oil: Removal: Lower

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Lower Oil Pan & Fasteners

Courtesy of CHRYSLER GROUP, LLC

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Drain the engine oil. Refer to OIL - STANDARD PROCEDURE .
Remove the belly pan.
Remove inner splash shield.
NOTE:
The lower oil pan must be removed to access all of the upper oil pan retaining bolts.
Remove fifteen bolts (1), two nuts (2) and two studs (3) from the flange of the lower oil pan.

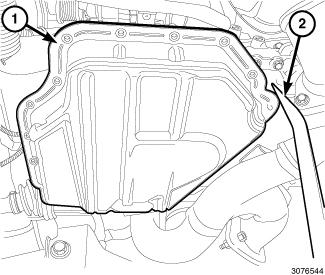

Fig 2: Using Pry Bar To Remove Oil Pan
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not pry on the lower oil pan flange. There are no designated pry points for lower oil pan removal. Prying on only one or a few locations could bend the flange and damage the pan.
Using a pry bar (2), apply a side force to the lower oil pan (1) in order to shear the sealant bond and remove the pan.
Remove all residual sealant (1) from the upper and lower oil pans. Refer to PAN, OIL, CLEANING .
