Insulator, Engine Mount, Rear: Removal: Removal: AWD

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

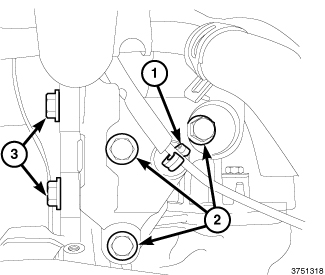

Fig 1: Rear Engine Mount Bracket & Bolts
GC0148111Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove two bolts (3) from the PTU to rear engine mount bracket.
  3. Disengage the gear shift cable from the retainer (1).
  4. Remove three bolts (2) from the rear engine mount bracket to transmission.
    Fig 2: Rear Engine Mount Isolator, Bracket & Bolts
    GC0148112Courtesy of CHRYSLER GROUP, LLC
  5. Remove four bolts (2) from the rear engine mount isolator (3).
  6. Remove the bracket and isolator assembly (1 and 3) from the vehicle.
  7. Remove the bolt (4) and separate the rear engine mount isolator (3) from the bracket (1).
