Air Cleaner: Installation: Installation

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

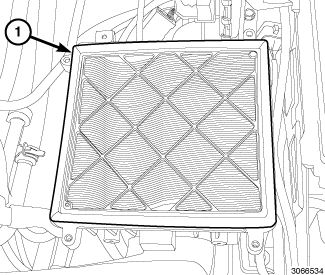

Fig 1: Air Cleaner Element
GC0147059Courtesy of CHRYSLER GROUP, LLC
  1. Install the air cleaner element (1) into the air cleaner housing.

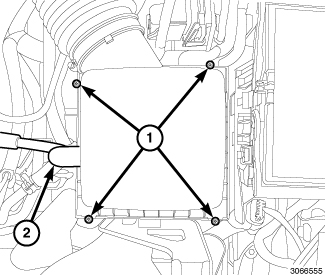

    Fig 2: Air Cleaner Housing Cover Screws & Fresh Air Makeup Hose
    GC0147060Courtesy of CHRYSLER GROUP, LLC
  2. Seat the cover onto the housing and tighten the four housing cover screws (1).
  3. Connect the fresh air makeup hose (2) to the air cleaner housing cover.
