B1751-15-Courtesy Lamp Control-Circuit Short To Battery Or Open: Notes

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

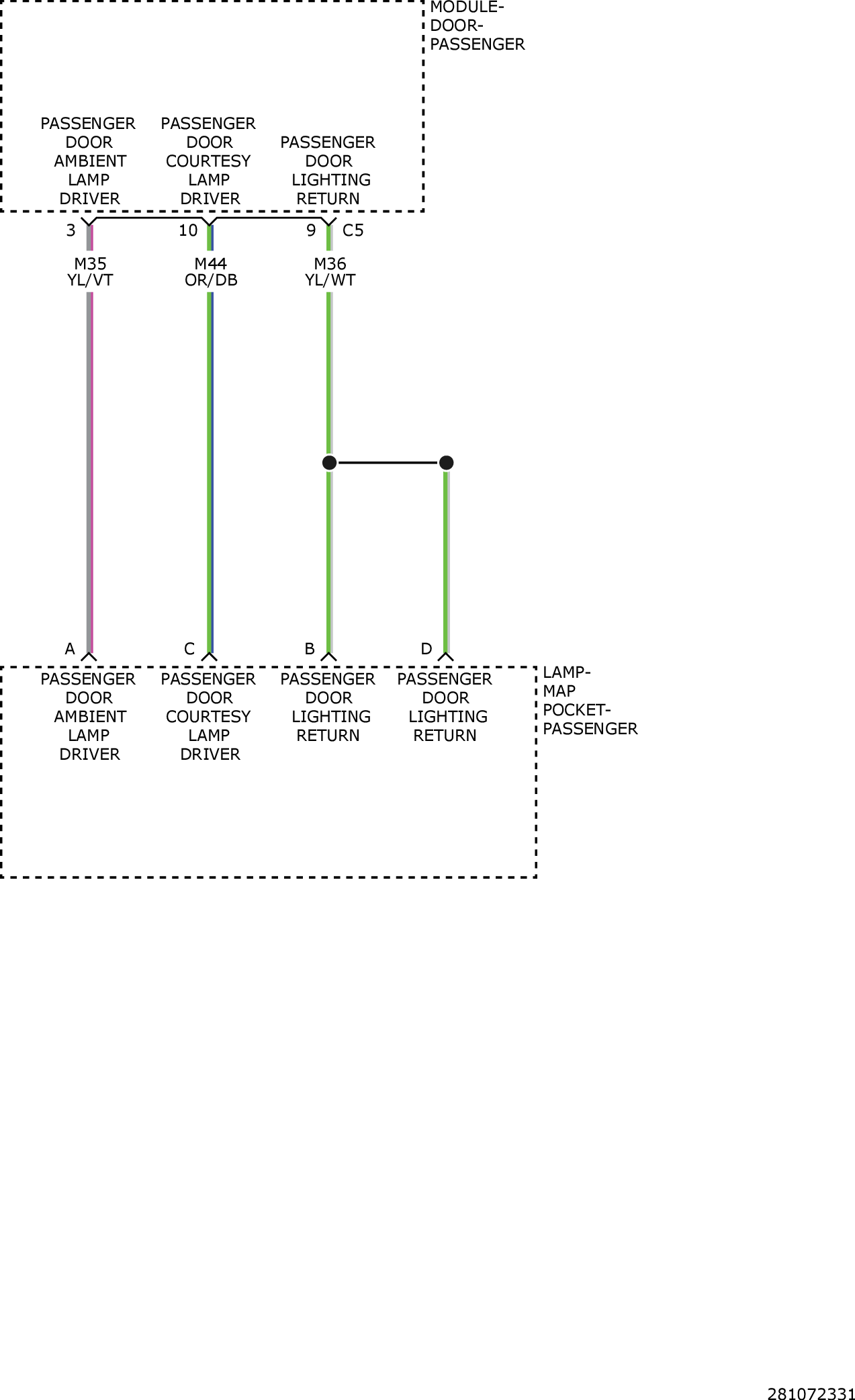

Fig 1: Passenger Courtesy Lamp Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
