Valve, Oil Pressure Relief: Inspection: Inspection
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

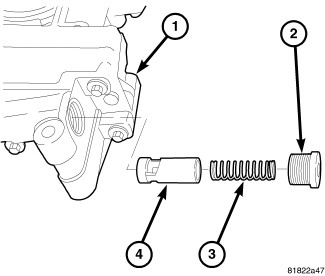

Pressure regulating valve (4) can be service separately from the oil pump assembly.
- Inspect pressure relief valve (4) scoring, gouging, or debris. Replace as needed.
- Inspect the pressure relief valve bore in the pump for scoring, gouging, or debris.
- If pump bore is damaged, replace balance shaft module.
