Insulator, Engine Mount, Left: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

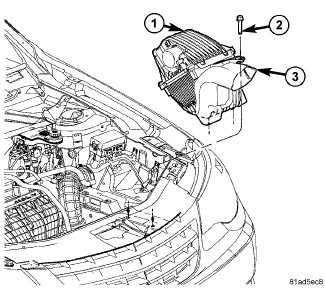

Fig 1: Air Cleaner Housing Assembly
GC0121483Courtesy of CHRYSLER GROUP, LLC
  1. Remove the air cleaner body (1). Refer to BODY, AIR CLEANER, REMOVAL  .
  2. Disconnect and isolate the negative battery cable.
  3. Remove the PCM and PCM mounting bracket. Refer to MODULE, POWERTRAIN CONTROL, REMOVAL .

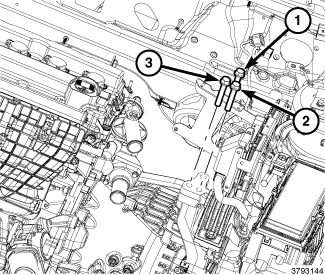

    Fig 2: Transaxle Mount Removal/Tightening Sequence
    GC0148117Courtesy of CHRYSLER GROUP, LLC
  4. Support the transaxle with a suitable jack.
  5. Remove the mount to transaxle bolts (1, 2 and 3).

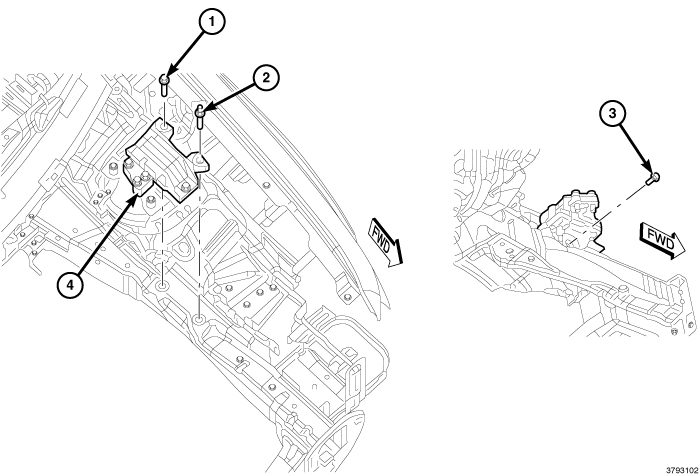

    Fig 3: Engine Mount Isolator Removal/Tightening Sequence
    GC0148116Courtesy of CHRYSLER GROUP, LLC
  6. Remove the left mount to frame rail fasteners (1 and 2).
  7. Lower the transaxle to gain access to the mount to frame rail fastener (3).
  8. Remove the mount isolator (4).
