Standard Procedure - Piston Ring - Fitting

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

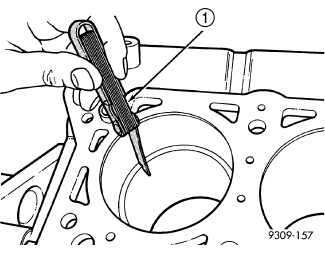

Fig 1: Check Gap On Piston Rings
GC0098638Courtesy of CHRYSLER GROUP, LLC
  1. Wipe cylinder bore clean. Insert ring and push down with piston to ensure it is square in bore. The ring gap measurement must be made with the ring positioning at least 13 mm (0.50 inch) from bottom of cylinder bore and below the bottom of the oil ring travel where cylinder bore has minimal wear. Check gap with feeler gauge. Refer to 2.4L ENGINE - SPECIFICATIONS  .
    NOTE:

    Ring end gap measurements are sensitive to the ring being square in the bore. Care must be used to avoid tilting the rings in cylinder bores when taking measurements.

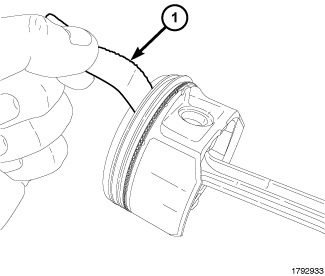

    Fig 2: Checking Piston Ring To Groove Side Clearance
    GC0098639Courtesy of CHRYSLER GROUP, LLC
  2. Check piston ring to groove side clearance. Refer to 2.4L ENGINE - SPECIFICATIONS  .
CAUTION:

Exercise care when using tools on piston. Do not scratch or gouge piston surface or ring grooves as this may cause engine damage.
