Frame, Ladder: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

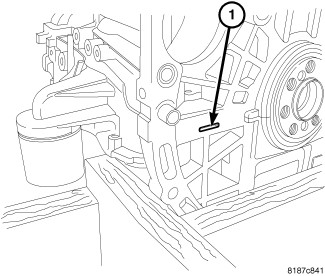

Fig 1: Pry Point 1
GC0121458Courtesy of CHRYSLER GROUP, LLC
  1. Remove oil pan. Refer to PAN, OIL, REMOVAL  .
  2. Remove balance shaft assembly. Refer to PUMP, ENGINE OIL, REMOVAL  .
  3. Remove ladder frame retaining bolts.
  4. Remove ladder frame using pry point cast in the rear of the block (1).

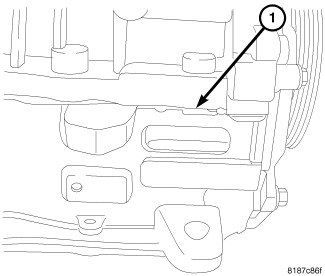

    Fig 2: Pry Point 2
    GC0121459Courtesy of CHRYSLER GROUP, LLC
  5. To assist in removing the ladder frame another (1) pry point cast in the right side of the block.
