Standard Procedure - Measuring Crankshaft End Play

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

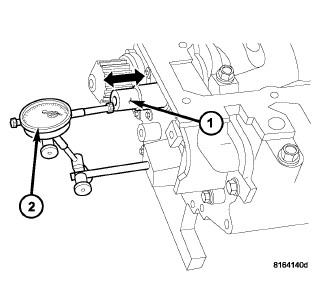

Fig 1: Checking Crankshaft End Play Using Dial Indicator
GC0121445Courtesy of CHRYSLER GROUP, LLC
1 - Crankshaft
2 - DIAL INDICATOR
  1. Mount a dial indicator (2) to front of engine with the locating probe on nose of crankshaft (1).
  2. Move crankshaft all the way to the rear of its travel.
  3. Zero the dial indicator.
  4. Move crankshaft all the way to the front and read the dial indicator. for end play specification. Refer to 2.4L ENGINE - SPECIFICATIONS  .
