Cylinder Head On

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Care must be taken not to damage the tappet bore or engine damage may result.

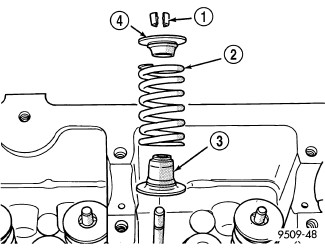

Fig 1: Valve Spring Assembly
GC0121432Courtesy of CHRYSLER GROUP, LLC
  1. Install valve seal/valve spring seat (3) assembly. Push the assembly down with appropriate size socket to seat it onto the valve guide.
  2. Install valve spring (2) and retainer (4) with keepers (1).

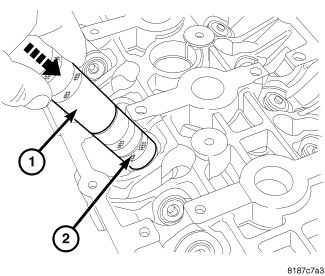

    Fig 2: Valve Installation
    GC0121433Courtesy of CHRYSLER GROUP, LLC
  3. Place the valve keepers in the retainer. Using metric valve keeper tool such as Snap-on® GA317 (or equivalent) installer (2) and remover (1) as a handle, install valve keepers with a downward push.
  4. Remove air hose and install spark plugs.
  5. Install valve tappets.
  6. Install camshafts . Refer to CAMSHAFT, ENGINE, INSTALLATION  .
  7. Install cylinder head cover . Refer to COVER(S), CYLINDER HEAD, INSTALLATION  .
