Cylinder Head Off

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Care must be taken not to damage the tappet bore or engine damage may result.

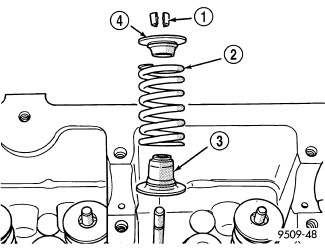

Fig 1: Valve Spring Assembly
GC0121434Courtesy of CHRYSLER GROUP, LLC
  1. Coat valve stems with clean engine oil and insert in cylinder head.
  2. Install new valve stem seals (3) on all valves using an appropriate sized socket to seat the seal/spring seat. The valve stem seals should be pushed firmly and squarely over valve guide.
  3. Install valve springs (2).
  4. Install keepers in retainer and place on valve spring.

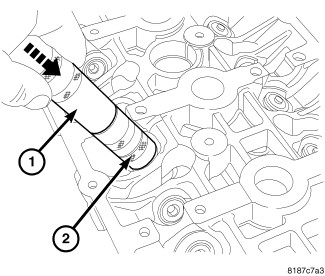

    Fig 2: Valve Installation
    GC0121435Courtesy of CHRYSLER GROUP, LLC
  5. Using metric valve keeper tool such as Snap-on® GA317 (or equivalent) installer (2) and remover (1) as a handle, push downward to install keepers.

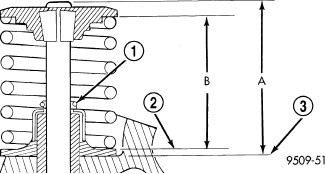

    Fig 3: Spring Installed Height And Valve Tip to Spring Seat Dimensions
    GC0121436Courtesy of CHRYSLER GROUP, LLC
  6. Check the valve spring installed height B after refacing the valve and seat. Make sure measurements are taken from top of spring seat to the bottom surface of spring retainer. If height is greater than 38.75 mm (1.525 in.), install a 0.762 mm (0.030 in.) spacer under the valve spring seat to bring spring height back within specification.
  7. Install valve tappets.
