Air Cleaner: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

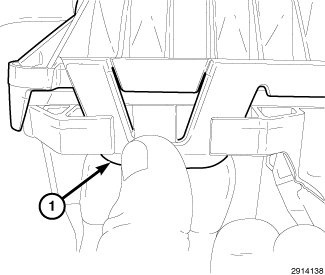

Fig 1: Air Box Lid Tabs
GC0138825Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Do not use an assist tool or excessive force when unlocking the air box lid tabs (1). Excessive force may break the tabs off of the lid.

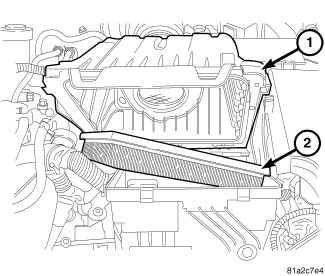

Fig 2: Air Cleaner Housing Cover & Air Filter Element
GC0121419Courtesy of CHRYSLER GROUP, LLC
  1. Unlock the air box lid tabs and lift the air cleaner housing cover (1).
  2. Pull the cover forward to disengage the rear tabs.
  3. Remove the air filter element (2).
