TEST FOR INTERMITTENT CONDITION
NOTE:
Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.
1. Turn the ignition on.
  NOTE:
  Make sure the battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, read the module status.
  NOTE:
  Check the BCM for any active CAN hardware DTCs, perform DTC before proceeding.

  Does the scan tool indicate that the module is active on the bus?

  Yes
  - The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Go To 2
CHECK THE (A929) FUSED B(+) CIRCUIT FOR AN OPEN OR SHORT CIRCUIT

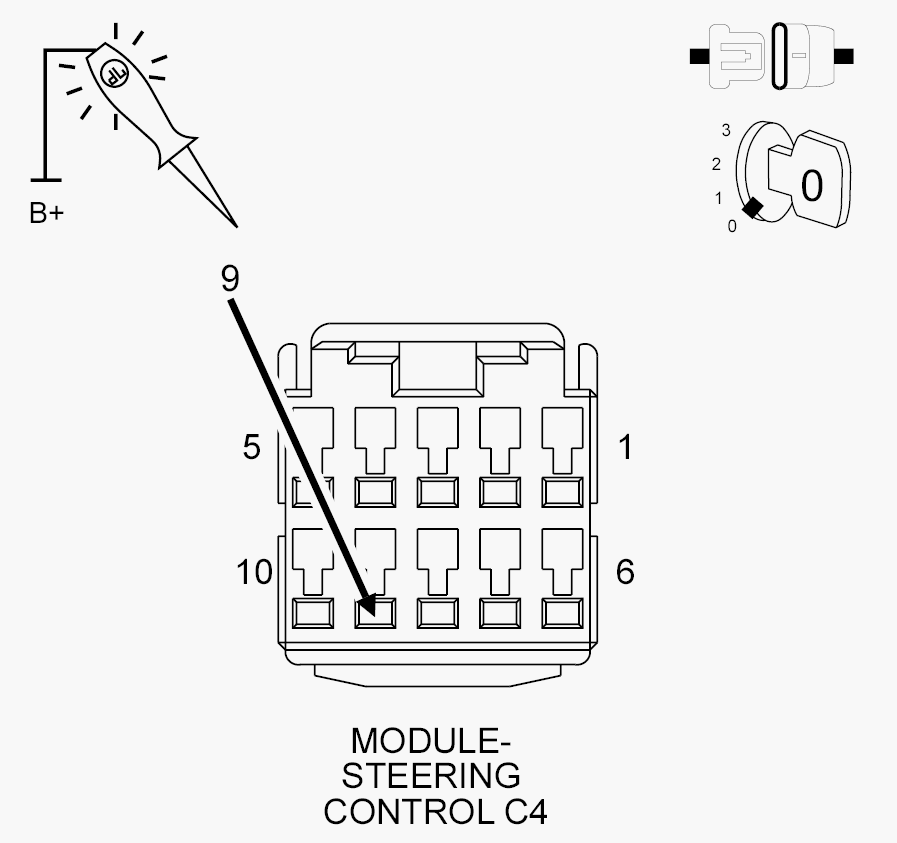

Fig 1: Checking Fused B(+) Circuit For An Open Or Short Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Steering Control Module C4 harness connector.
3. Using a 12-volt test light connected to ground, check the (A929) Fused B(+) circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 3
  No
  - Repair the open or short in the (A929) Fused B(+) circuit.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
CHECK THE (Z926) GROUND CIRCUIT FOR AN OPEN

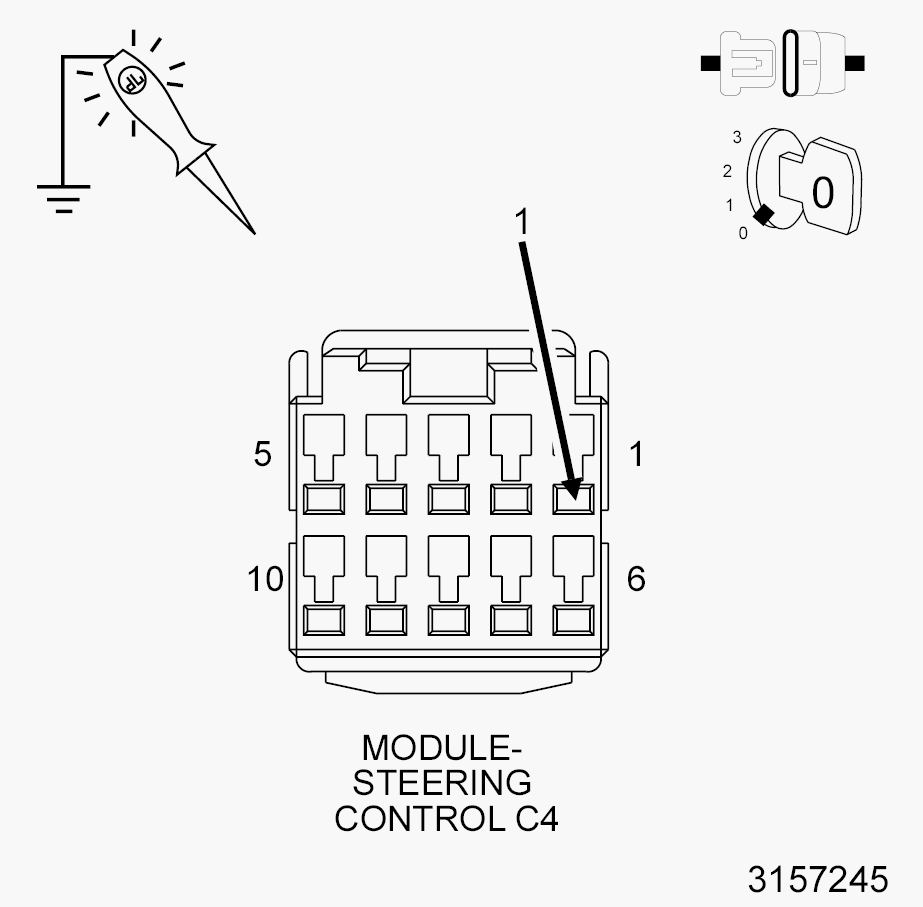

Fig 2: Checking Ground Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Using a 12-volt test light connected to 12-volts, check the (Z926) Ground circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 4
  No
  - Repair the open in the (Z926) Ground circuit.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
CHECK THE (F944) FUSED RUN/START RELAY OUTPUT CIRCUIT FOR AN OPEN OR SHORT CIRCUIT

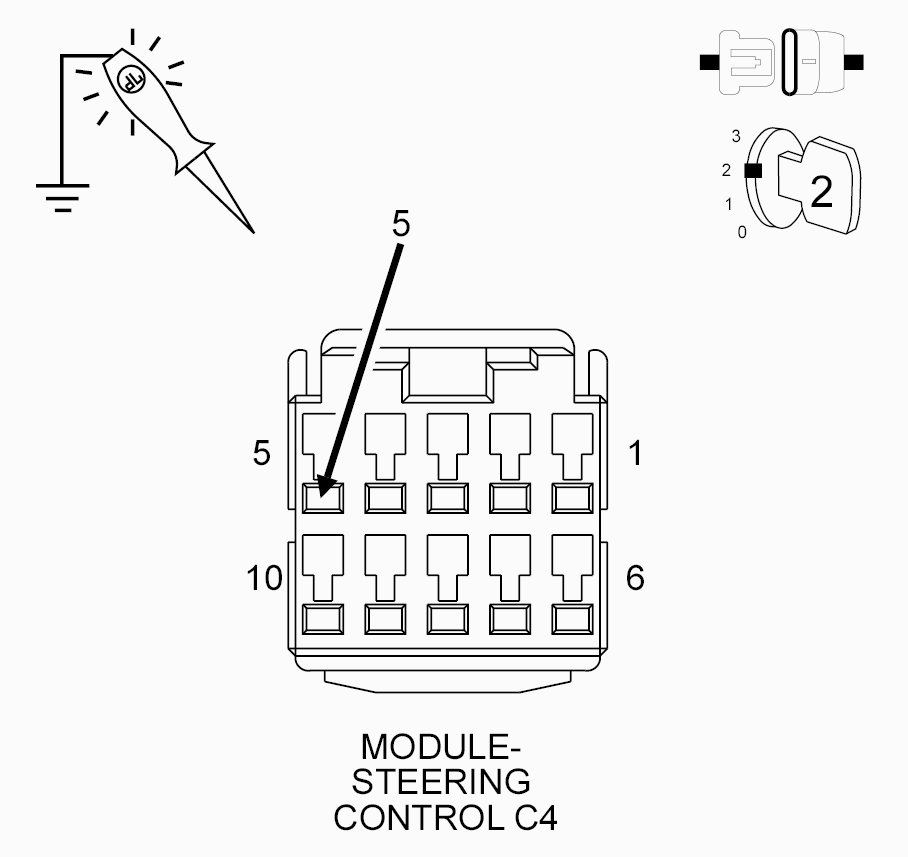

Fig 3: Checking Fused Run/Start Relay Output Circuit For An Open Or Short Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition on.
2. Using a 12-volt test light connected to ground, check the (F944) Fused Run/Start Relay Output circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 5
  No
  - Repair the open or short in the (F944) Fused Run/Start Relay Output circuit.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
CHECK THE (D97) AND (D98) CAN C BUS CIRCUITS FOR AN OPEN

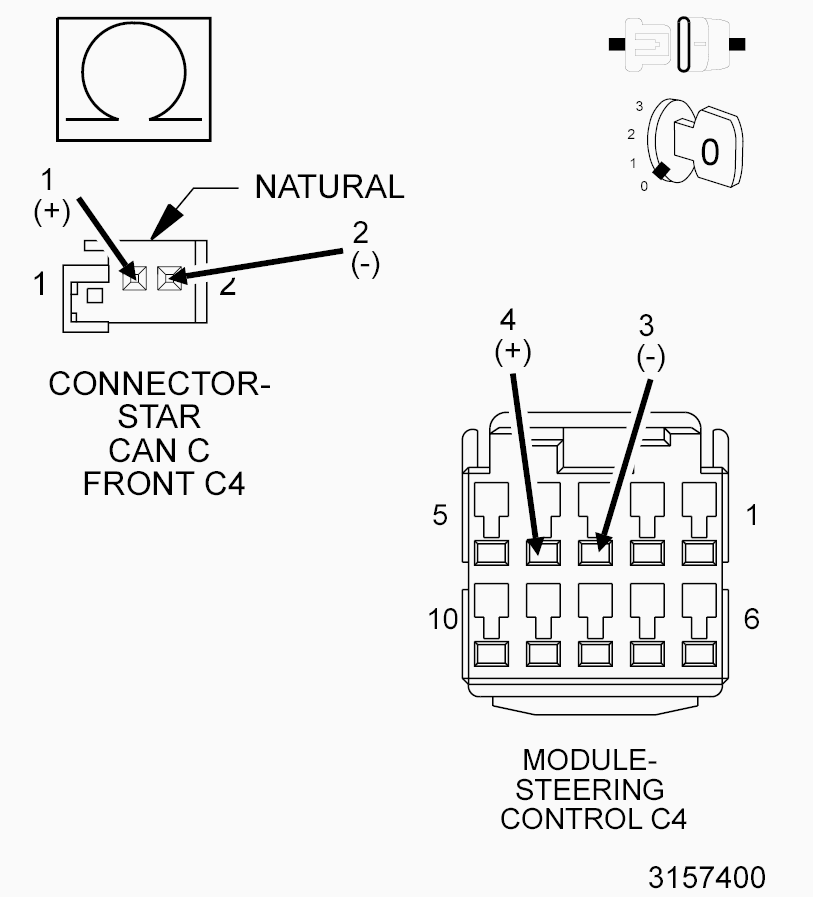

Fig 4: Checking CAN C BUS Circuits For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Front CAN C Star Connector C4 harness connector.
3. Measure the resistance of the (D97) CAN C Bus (+) circuit between the Front CAN C Star Connector C4 harness connector and the Steering Control Module C4 harness connector.
4. Measure the resistance of the (D98) CAN C Bus (-) circuit between the Front CAN C Star Connector C4 harness connector and the Steering Control Module C4 harness connector.
  Are the resistances below 5.0 Ohms?

  Yes
  - Replace the Steering Control Module which is integral to the Clockspring in accordance with the Service Information. Refer to CLOCKSPRING, REMOVAL .
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Repair the open in the (D97) CAN C Bus (+) or (D98) CAN C Bus (-) circuit.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
