Valve Body: Installation: Installation

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

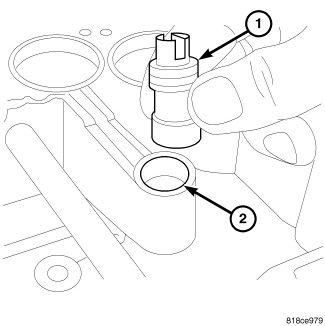

Fig 1: Identifying Clutch Oil Seal
GC0122797Courtesy of CHRYSLER GROUP, LLC
  1. Raise the vehicle on the hoist.
  2. Install a NEW  2/4 clutch oil seal (1).

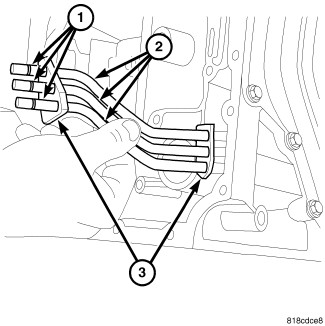

    Fig 2: Removing/Installing Oil Transfer Tubes
    GC0122514Courtesy of CHRYSLER GROUP, LLC
  3. Install new  O-rings (1) on the underdrive compounder assembly oil transfer tubes (2).

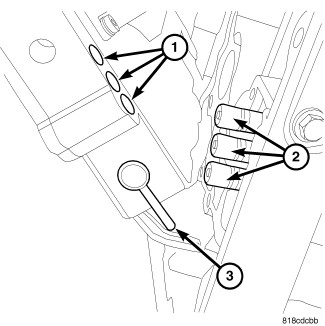

    Fig 3: Identifying Oil Transfer Tubes, Manual Valve & Valve Body
    GC0122513Courtesy of CHRYSLER GROUP, LLC
  4. Insure the manual lever is fully forward to keep the manual valve pin (3) from binding.
  5. Set the manual valve pin (3) into the slot in the rooster comb.
  6. Set the valve body into the underdrive compounder assembly oil transfer tubes (2) and press the valve body into place.

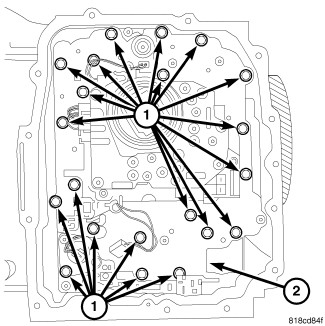

    Fig 4: Identifying Valve Body Bolts
    GC0122789Courtesy of CHRYSLER GROUP, LLC
  7. Install the twenty one valve body to case bolts and tighten to 6 N.m (50 in. lbs.).

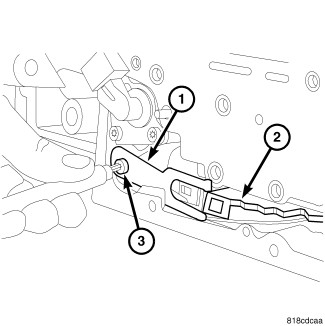

    Fig 5: Identifying Detent Spring, Arm & Screw
    GC0122788Courtesy of CHRYSLER GROUP, LLC
  8. Install the detente arm (1) onto the pin at the valve body.
  9. Install the screw (3) at the detente arm and tighten to 6 N.m (50 in. lbs.).

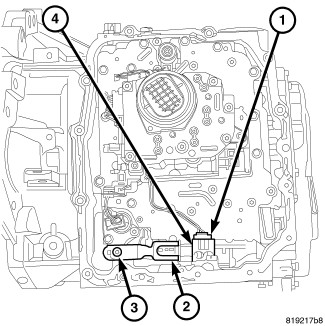

    Fig 6: Identifying Range Sensor, Detent Spring, Bolts & Electrical Connector
    GC0122511Courtesy of CHRYSLER GROUP, LLC
  10. Install the electrical connector (1) at the valve body.
  11. Lower the hoist.

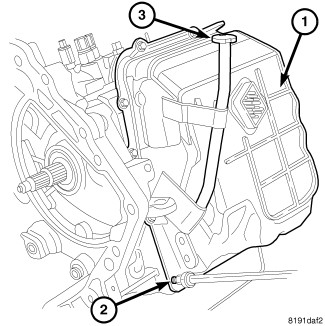

    Fig 7: Identifying Valve Body Oil Pan & Bolts
    GC0122509Courtesy of CHRYSLER GROUP, LLC
  12. Install the valve body oil pan, use a bead of MOPAR® ATF RTV (MS-GF41).
  13. Install the upper valve body oil pan bolts and tighten to 6 N.m (50 in. lbs.).
  14. Install the pressure tap at valve body oil pan and tighten to 6 N.m (50 in. lbs.).
  15. Lower the vehicle on a hoist.

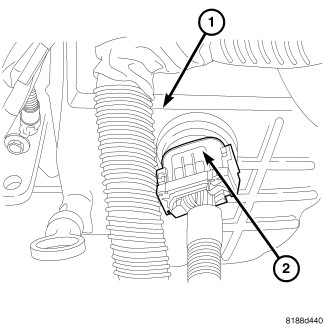

    Fig 8: Solenoid Connector AT Transmission
    GC0122501Courtesy of CHRYSLER GROUP, LLC
  16. Install the solenoid pack connector (2) at valve body oil pan.
  17. Raise the vehicle on the hoist.
    Fig 9: Identifying Valve Body Oil Pan & Bolts
    GC0122509Courtesy of CHRYSLER GROUP, LLC
  18. Install the lower valve body oil pan bolts and tighten to 6 N.m (50 in. lbs.).
  19. Install the left side inner wheel splash shield screws (1).

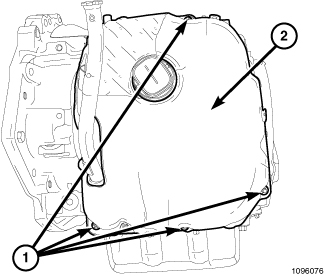

    Fig 10: Front Sound Dampener Cover & Fasteners
    GC0122507Courtesy of CHRYSLER GROUP, LLC
  20. Install the Front Sound Damper Cover (2) and the fasteners (1).
  21. Lower the vehicle.

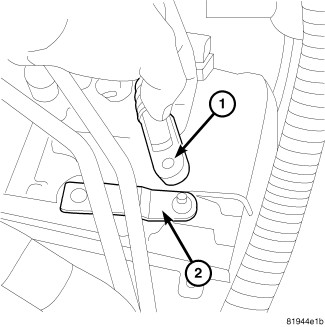

    Fig 11: Identifying Shift Cable & Manual Valve Lever
    GC0121541Courtesy of CHRYSLER GROUP, LLC
  22. Install shift cable (1) to manual lever (2).
  23. Install lower radiator hose and clamps.
  24. Fill the cooling system. Refer to STANDARD PROCEDURE .
  25. Install the battery cable.
  26. Fill transmission and road test. Refer to FLUID, STANDARD PROCEDURE .
