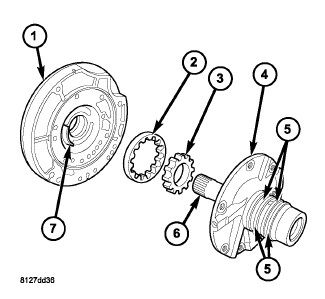

Fig 1: View Of Oil Pump Assembly Components
Courtesy of CHRYSLER GROUP, LLC
1 - PUMP BODY
2 - OUTER GEAR
3 - INNER GEAR
4 - REACTION SHAFT SUPPORT
5 - SEAL RINGS (4)
6 - REACTION SHAFT
7 - CRESCENT
Assemble oil pump.
Fig 2: Dimples
Courtesy of CHRYSLER GROUP, LLC
Ensure that the dimples (1) are facing up upon reassembly.

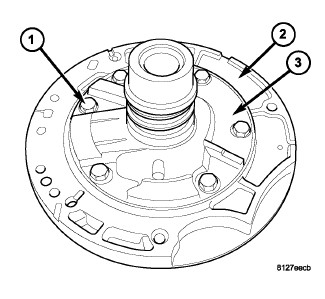

Fig 3: Identifying Reaction Support, Pump Body & Bolts
Courtesy of CHRYSLER GROUP, LLC
1 - BOLTS
2 - PUMP BODY
3 - REACTION SHAFT SUPPORT
Install and tighten reaction shaft support-to-oil pump housing bolts (1) to 28 N.m (20 ft. lbs.).
