Cable, Shift: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

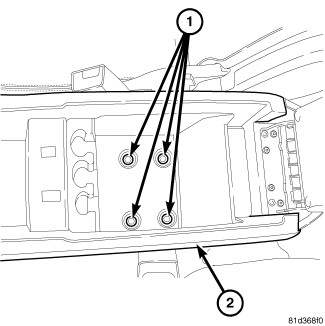

Fig 1: Center Console

Courtesy of CHRYSLER GROUP, LLC

Disconnect battery negative cable.
Remove the center console. Refer to CONSOLE, CENTER, REMOVAL .

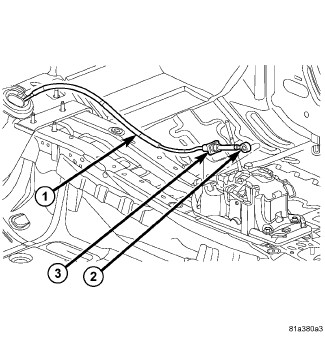

Fig 2: Identifying Shift Cable AT Shifter
Courtesy of CHRYSLER GROUP, LLC
Disconnect and remove gearshift cable (2, 3) from shift mechanism.
Remove the air bag module and the dynamics sensor. Refer to MODULE, OCCUPANT RESTRAINT CONTROLLER, REMOVAL .
Remove the shift cable at the transmission and pull cable through.
