Assembly, Transmission Solenoid And Pressure Switch: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove valve body. Refer to VALVE BODY, REMOVAL .
    Fig 1: Identifying Bolts AT Clamp Plate
    GC0122697Courtesy of CHRYSLER GROUP, LLC
  2. Remove the clamp plate bolts and clamp plate.

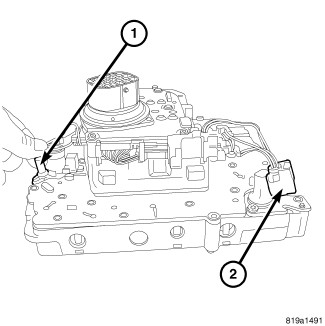

    Fig 2: Identifying Solenoid Pack Electrical Connectors
    GC0122698Courtesy of CHRYSLER GROUP, LLC
  3. Remove the electrical connectors to the pressure control solenoid and line pressure sensors.
  4. Remove the solenoid/pressure switch assembly.
