Seal, Output Flange: Installation: Installation
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

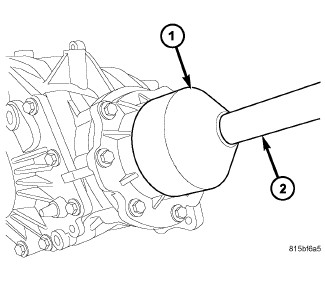

| 1 - INSTALLER 9684 |
| 2 - HANDLE C-4171 |
- Using Installer (special tool #9684, Installer, Seal) (1) and Handle (special tool #C-4171, Driver Handle, Universal) (2), install new PTU output flange seal.
Courtesy of CHRYSLER GROUP, LLC

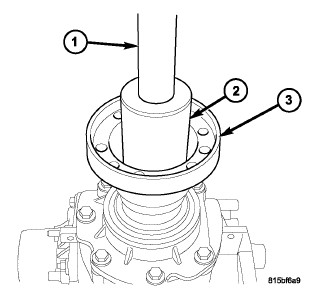

1 - HANDLE C-4171 2 - INSTALLER 9321 3 - OUTPUT FLANGE - Using Installer (special tool #9321, Installer, Input Shaft Seal) (2) and Handle (special tool #C-4171, Driver Handle, Universal), (1) install output flange (3). Lightly tap on flange until sufficient threads are exposed to start flange nut by hand.

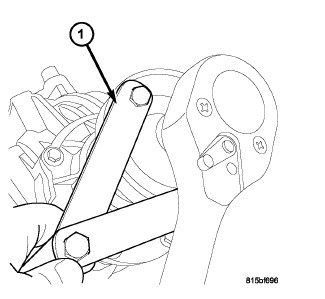

1 - SPANNER WRENCH 6958 - Using Spanner Wrench (special tool #6958, Wrench, Spanner) (1), install and torque output flange nut to 235 N.m (173 ft. lbs.) torque.
- Install propeller shaft. Refer to INSTALLATION .
- Install exhaust pipe. Refer to PIPE, EXHAUST, INSTALLATION .
