Pump, Transmission Oil: Description: Description
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

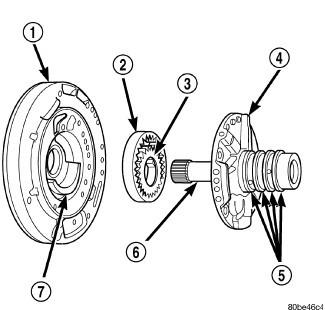

| 1 - PUMP HOUSING |
| 2 - OUTER PUMP GEAR |
| 3 - INNER PUMP GEAR |
| 4 - REACTION SHAFT SUPPORT |
| 5 - SEAL RINGS (4) |
| 6 - REACTION SHAFT |
| 7 - CRESCENT |
The oil pump is located in the pump housing inside the bell housing of the transmission case. Refer to Fig 1. The oil pump assembly consists of an inner (3) and outer (2) gear, a housing (1), and a cover that also serves as the reaction shaft support (6).
