Section 54 (40TE Automatic Transmission (Service Information)): Accumulator: Description: Description

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Underdrive And Overdrive Accumulators

Courtesy of CHRYSLER GROUP, LLC

1 - RETURN SPRING

2 - UNDERDRIVE CLUTCH ACCUMULATOR

3 - SEAL RING (2)

4 - OVERDRIVE CLUTCH ACCUMULATOR

The 41TE underdrive, overdrive, low/reverse, and 2/4 clutch hydraulic circuits each contain an accumulator. An accumulator typically consists of a piston (2), seal rings (3) return spring(s) (1) and a cover or plug. Refer to Fig 1. The overdrive and underdrive accumulators are located within the transaxle case, and are retained by the valve body.

Fig 2: Low/Reverse Accumulator

Courtesy of CHRYSLER GROUP, LLC

1 - ACCUMULATOR PISTON

2 - SEAL RINGS

3 - RETURN SPRINGS

4 - (NOTE NOTCH)

The low reverse accumulator (1) is also located within the transaxle case, but the assembly is retained by a cover and a snap-ring. Refer to Fig 2.

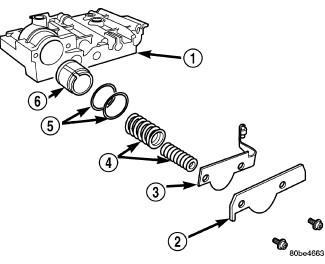

Fig 3: 2/4 Accumulator Assembly

Courtesy of CHRYSLER GROUP, LLC

1 - VALVE BODY

2 - RETAINER PLATE

3 - DETENT SPRING

4 - SPRINGS

5 - SEALS

6 - PISTON

The 2/4 accumulator is located in the valve body (1). It is retained by a cover and retaining screws. Refer to Fig 3.
