Steel Wheel
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Installing wheels without good metal-to-metal contact with the mounting surface could cause loosening of the wheel mounting (lug) nuts. This could adversely affect the safety and handling of the vehicle.
NOTE:
Never use oil or grease on studs or wheel mounting (lug) nuts.
- Clean the wheel mounting surfaces, removing any build-up of corrosion. It is important to have good metal-to-metal contact between the wheel and vehicle.
- Position the tire and wheel assembly (1) on the wheel mounting studs using the hub pilot as a guide. Place and hold the wheel flush up against the mounting surface.
- Align the valve notch in the wheel cover with the valve stem on the wheel and install the wheel cover over the studs.NOTE:
Always use the original (OEM) style wheel mounting (lug) nuts. Do not use replacement parts of lesser quality or substitute design.
- Install and lightly snug all five wheel mounting (lug) nuts (3) Do not tighten at this time .
- Lower the vehicle.

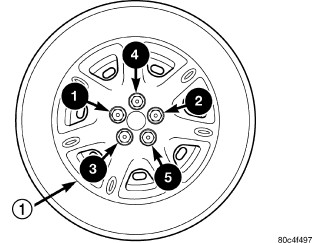

1 - BOLT-ON WHEEL COVER - Progressively tighten all wheel mounting (lug) nuts in the proper sequence shown. Tighten the nuts to a final torque of 135 N.m (100 ft. lbs.).
