Fixed Auxiliary Led And Circuit Board Unit
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove the rear LED dome/reading lamp unit. Refer to LAMP, DOME, READING, REMOVAL .

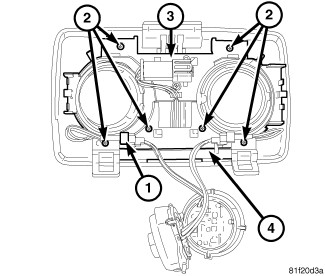

- Remove and disconnect the two articulated eyeball LED pods (1) from the lamp housing.
- Disconnect the lamp wiring from the auxiliary LED wiring connector (3).
- Remove the six screws (2) that secure the printed circuit board to the lamp housing.
- Remove the auxiliary LED and circuit board unit from the lamp housing (4).
