With Overhead Console

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

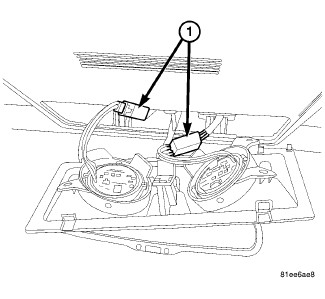

Fig 1: Light Emitting Diode (With Overhead Console)
GC0128647Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick or another suitable wide flat-bladed tool, gently pry the edge of the lamp housing away from the overhead console far enough to disengage the four (two at the front and two at the rear) integral latch features.
  3. Pull the lamp away from the overhead console mounting hole far enough to access and disconnect the wire harness connectors (1) from the back of the lamp.
  4. Remove the lamp from the vehicle.
