Flashlight, Rechargeable: Description: Description

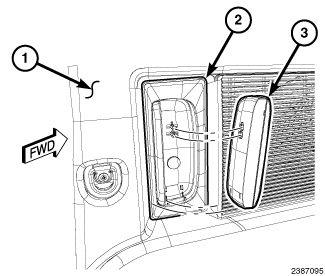

An optional removable and rechargeable flashlight (3) is encased within a molded plastic housing, which is secured within a bezel/charging station (2) at the back of the left quarter inner trim panel (1) by two tabs on the end opposite the clear flashlight lens and a push-push type latch mechanism. The flashlight is powered by a rechargeable and replaceable lithium battery. A momentary switch on the flashlight electronic circuit board is actuated by a plastic push button located on the side of the flashlight housing. When the flashlight is turned ON it illuminates two clear Light Emitting Diode (LED) units to create a wide and bright light beam. A red LED unit on the side of the flashlight housing behind the push button illuminates as the battery becomes discharged to indicate that the unit requires recharging.
The bezel/charging station unit, the flashlight battery and the flashlight unit are each available for separate service replacement. If any other component of the flashlight or bezel/charging station are damaged or ineffective, the complete flashlight unit or bezel/charging station unit must be replaced.
