2.4L Rear

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

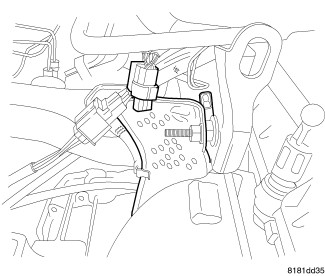

Fig 1: Rear Cam Sensor Shield Installed
GC0082376Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate negative battery cable.
  2. Disconnect electrical connector at sensor.
  3. Remove nut retaining heat shield.

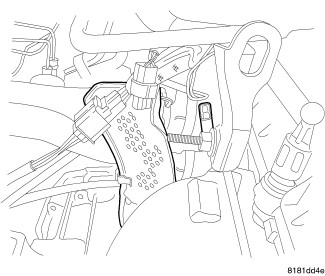

    Fig 2: Rear Cam Sensor Shield Removed
    GC0082377Courtesy of CHRYSLER GROUP, LLC
  4. Pull heat shield out to uncover sensor.
  5. Remove mounting bolt.
    Fig 3: Cam Sensor
    GC0082375Courtesy of CHRYSLER GROUP, LLC
  6. Remove sensor.
