2.4L Front

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

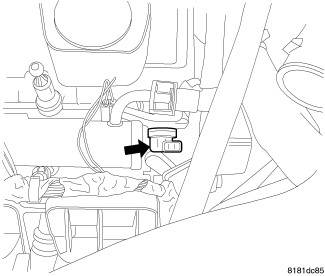

Fig 1: Front Cam Sensor
GC0082374Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate negative battery cable.
  2. Disconnect electrical connector from camshaft position sensor.
  3. Remove camshaft position sensor mounting screw.
    Fig 2: Cam Sensor
    GC0082375Courtesy of CHRYSLER GROUP, LLC
  4. Remove sensor.
