Capacitor, Ignition: Removal: 3.6L

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

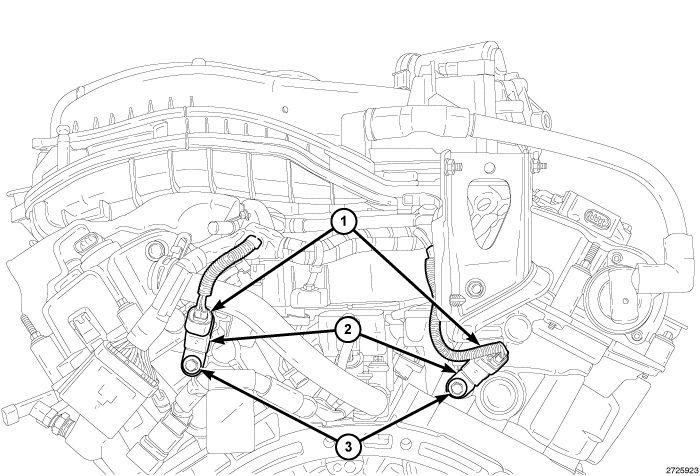

Fig 1: Electrical Connector, Mounting Bolt & Ignition Capacitor
GC0144203Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the electrical connector (1).
  3. Remove the mounting bolt (3) and the ignition capacitor (2).
