Exhaust Temperature Sensor 1/2

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Engine Cover
GC0148021Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the engine cover (1).

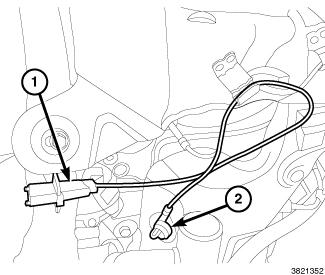

    Fig 2: Downstream Exhaust Temperature Sensor & Connector
    GC0153960Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the downstream exhaust temperature sensor wire harness connector.
  4. Detach the downstream exhaust temperature sensor wire harness connector (1) from bracket.
  5. Remove the downstream exhaust temperature sensor (2).
