Exhaust Temperature Sensor 1/1

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

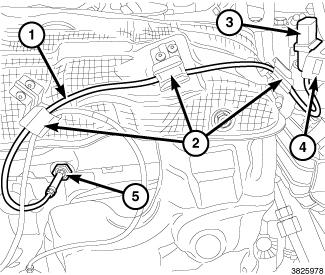

Fig 1: Upstream Exhaust Temperature Sensor, Wire, Bracket & Connector
GC0153964Courtesy of CHRYSLER GROUP, LLC
  1. Install the upstream exhaust temperature sensor 1/1 (5) and tighten to 45 N.m (33 ft. lbs.).
  2. Attach the upstream exhaust temperature sensor 1/1 wire harness connector (3) to bracket (4).
  3. Attach the upstream exhaust temperature sensor 1/1 wire (1) to heat shield (2).

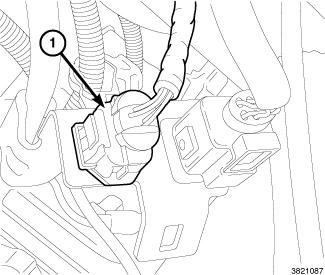

    Fig 2: Upstream Exhaust Temperature Sensor Connector
    GC0153959Courtesy of CHRYSLER GROUP, LLC
  4. Connect the upstream temperature sensor wire harness connector (1).
    Fig 3: Engine Cover
    GC0148021Courtesy of CHRYSLER GROUP, LLC
  5. Install the engine cover (1).
  6. Connect the negative battery cable.
