Muffler, Exhaust: Installation: Installation
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

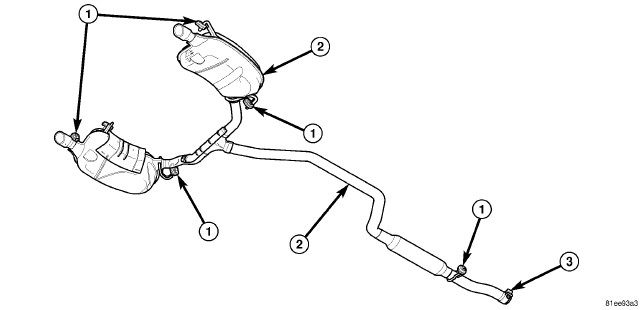

| 1 - INSULATOR |
| 2 - MUFFLER/EXHAUST PIPE ASSEMBLY |
| 3 - BAND CLAMP |
NOTE:
Always work from the front to rear of exhaust system when aligning and tightening exhaust system components.

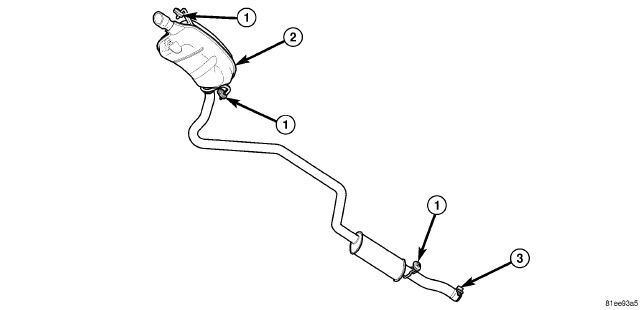

| 1 - INSULATOR |
| 2 - MUFFLER/EXHAUST PIPE ASSEMBLY |
| 3 - BAND CLAMP |
- Position muffler/resonator assembly (2) onto exhaust pipe.
- Install support isolators.
- Align muffler and resonator assembly to maintain position and proper clearance with underbody parts. All support isolators should have equal load on them.
- Install new band clamp (3). Tighten to 54 N.m (40 ft. lbs.).
- Connect ground strap to muffler (2).
- Lower vehicle.
- Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary. Refer to DIAGNOSIS AND TESTING .
- Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
