Sensor, Manifold Air Pressure (Map): Removal: 3.6L

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Remove the engine cover (1).

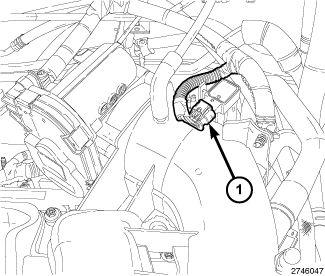

Fig 2: MAP Sensor Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Unlock and disconnect the electrical connector (1) from the MAP sensor.

Fig 3: Removing MAP Sensor
Courtesy of CHRYSLER GROUP, LLC
Rotate the MAP sensor 1/4 turn counterclockwise and pull the sensor straight up and out of the upper intake manifold.

Fig 4: O-Ring
Courtesy of CHRYSLER GROUP, LLC
The MAP sensor O-ring (1) can be reused if not damaged.
