Sensor, Manifold Air Pressure (Map): Installation: 3.6L

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: O-Ring

Courtesy of CHRYSLER GROUP, LLC

The manifold air pressure (MAP) sensor O-ring (1) can be reused if not damaged.
Apply a small amount of engine oil to the sensor O-ring (1).

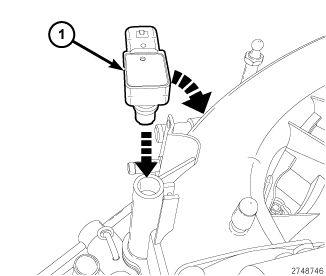

Fig 2: MAP Sensor And Rotate 1/4 Turn Clockwise
Courtesy of CHRYSLER GROUP, LLC
Install the MAP sensor (1) into the upper intake manifold and rotate 1/4 turn clockwise.

Fig 3: MAP Sensor Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Connect and lock the electrical connector (1) to the sensor.

Fig 4: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable and tighten nut to 7 N.m (62 in. lbs.).
