Sensor, Manifold Air Pressure (Map): Installation: 2.4L

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

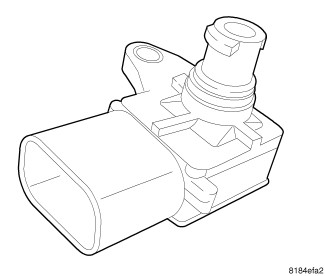

Fig 1: MAP Sensor

Courtesy of CHRYSLER GROUP, LLC

Install manifold absolute pressure (MAP) sensor to intake manifold.

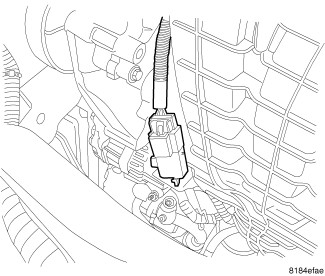

Fig 2: MAP Sensor Location
Courtesy of CHRYSLER GROUP, LLC
Tighten screw to 4.5 N.m (40 in. lbs.).
Connect electrical connector to sensor.
Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
