Sensor, Crankshaft Position: Removal: 2.4L

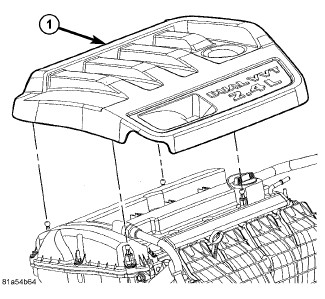

Fig 1: Engine Cover

Courtesy of CHRYSLER GROUP, LLC

The Crankshaft Position Sensor is in the rear of the engine block near the transmission.

1. Remove the engine cover (1).

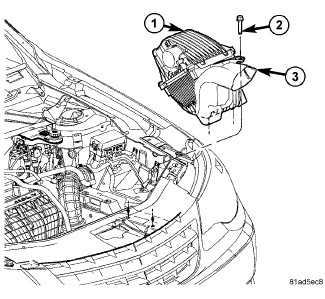

   Fig 2: Air Cleaner Housing Assembly

   Courtesy of CHRYSLER GROUP, LLC
2. Disconnect and isolate the negative battery cable.
3. Remove the air cleaner body (1). Refer to BODY, AIR CLEANER, REMOVAL for 3.6L.

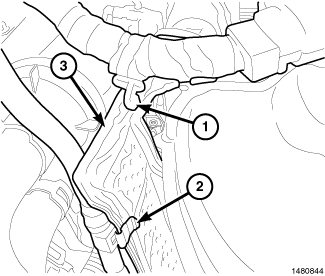

   Fig 3: Upstream O2 Sensor Wire Harness Retainer

   Courtesy of CHRYSLER GROUP, LLC
4. Disengage the upstream O2 sensor wire harness retainer (1) and crankshaft position sensor wire harness retainer (2) from the heat shield (3).

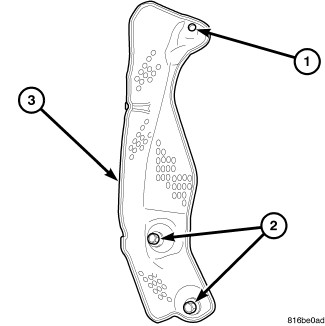

   Fig 4: Maniverter Side Heat Shield

   Courtesy of CHRYSLER GROUP, LLC
5. Remove one nut (1) and two heat shield retaining bolts (2).
6. Remove heat shield (3).

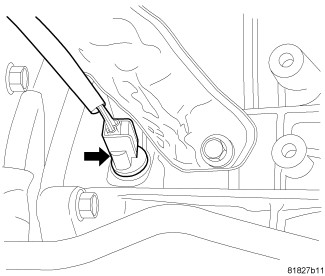

   Fig 5: Sensor Location

   Courtesy of CHRYSLER GROUP, LLC
7. Remove the crankshaft position sensor mounting bolt.
8. Remove sensor with the wire harness attached.
9. Unlock and disconnect the electrical connector from the crankshaft position sensor.
