Sensor, Crankshaft Position: Installation: 2.4L

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

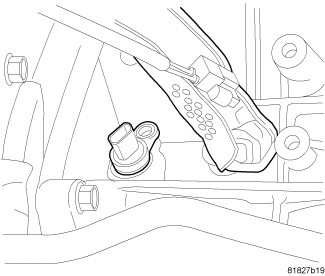

Fig 1: Crankshaft Position Sensor

Courtesy of CHRYSLER GROUP, LLC

Check O-ring for damage and lubricate the O-ring with engine oil before installing sensor.
Using a twisting motion, install the crankshaft position sensor.
Install the crankshaft position sensor bolt. Tighten the bolt to 9 N.m (80 in. lbs.).

Fig 2: Sensor Location
Courtesy of CHRYSLER GROUP, LLC
Connect and lock the electrical connector to the crankshaft position sensor.

Fig 3: Maniverter Side Heat Shield
Courtesy of CHRYSLER GROUP, LLC
Install the heat shield (3) with one nut (1) and two heat shield retaining bolts (2).

Fig 4: Upstream O2 Sensor Wire Harness Retainer
Courtesy of CHRYSLER GROUP, LLC
Install the upstream O2 sensor wire harness retainer (1) and crankshaft position sensor wire harness retainer (2) to the heat shield (3).

Fig 5: Air Cleaner Housing Assembly
Courtesy of CHRYSLER GROUP, LLC
Install the air cleaner body (1). Refer to BODY, AIR CLEANER, INSTALLATION .

Fig 6: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Connect the negative battery cable.
Install the engine cover (1).
