Sensor, Mass Airflow (MAF): Installation: Installation
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

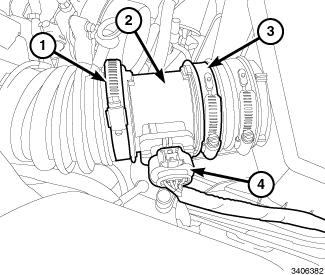

- Install the Mass Air Flow (MAF) sensor (2) to air cleaner housing outlet hose and securely tighten clamp (3).
- Connect the upper clean air to turbocharger tube to MAF sensor (2) and securely tighten clamp (1).
- Connect MAF sensor wire harness connector (4).
- Connect the negative battery cable.
