Sensor, Crankshaft Position: Installation: Installation

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

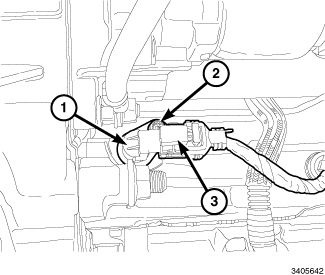

Fig 1: Crankshaft Position Sensor, Connector & Bolt

Courtesy of CHRYSLER GROUP, LLC

Install the Crankshaft Position Sensor (CKP) (1). Tighten bolt (2) 9 N.m (80 in. lbs.).
Connect the CKP wire harness connector (3).

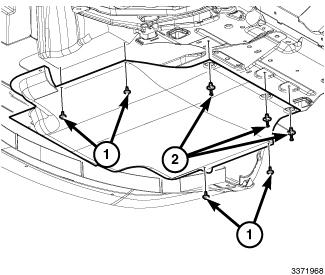

Fig 2: Engine Belly Pan & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Install the belly pan and fasteners (1, 2).
Lower the vehicle.
Connect the negative battery cable.
