Tube, Fuel Tank Filler: Installation: AWD

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

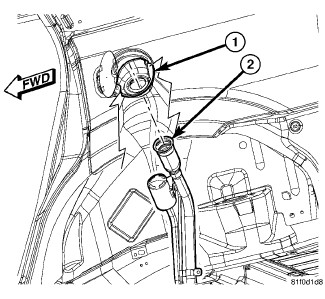

Fig 1: Fuel Filler Tube

Courtesy of CHRYSLER GROUP, LLC

1 - fuel door housing assembly

2 - fuel filler tube

Install fuel filler tube (2) to the fuel door housing assembly (1).

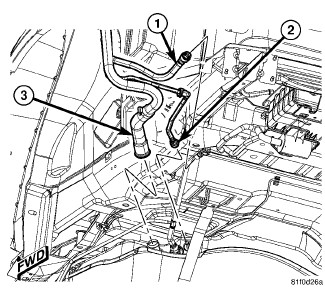

Fig 2: Fuel Fill Tube AWD

Courtesy of CHRYSLER GROUP, LLC

1 - canister filter line quick connect fitting

2 - recirculation line quick connect fitting

3 - fuel filler tube

Install fuel filler tube (3) to the fuel tank. Tighten hose clamp to 3 N.m (27 in. lbs.).
Install the recirculation line quick connect fitting (2) to the fuel tank.

Install the canister filter line quick connect fitting (1).

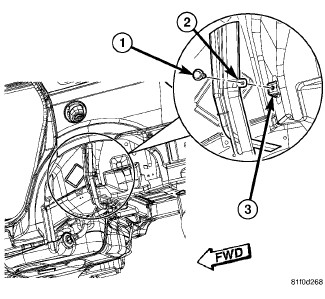

Fig 3: Filler Tube Mounting Bracket Bolt

Courtesy of CHRYSLER GROUP, LLC

1 - filler tube mounting bracket bolt

2 - filler tube mounting bracket

3 - filler tube mounting bracket body mount

Install filler tube mounting bracket (2) and bolt (1) to the body mount (3). Tighten to 11.5 N.m (101 in. lbs.).
Install the inner splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
Install fuel cap.
Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
