Checking The Pcm Power And Ground Circuits: Notes

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article .

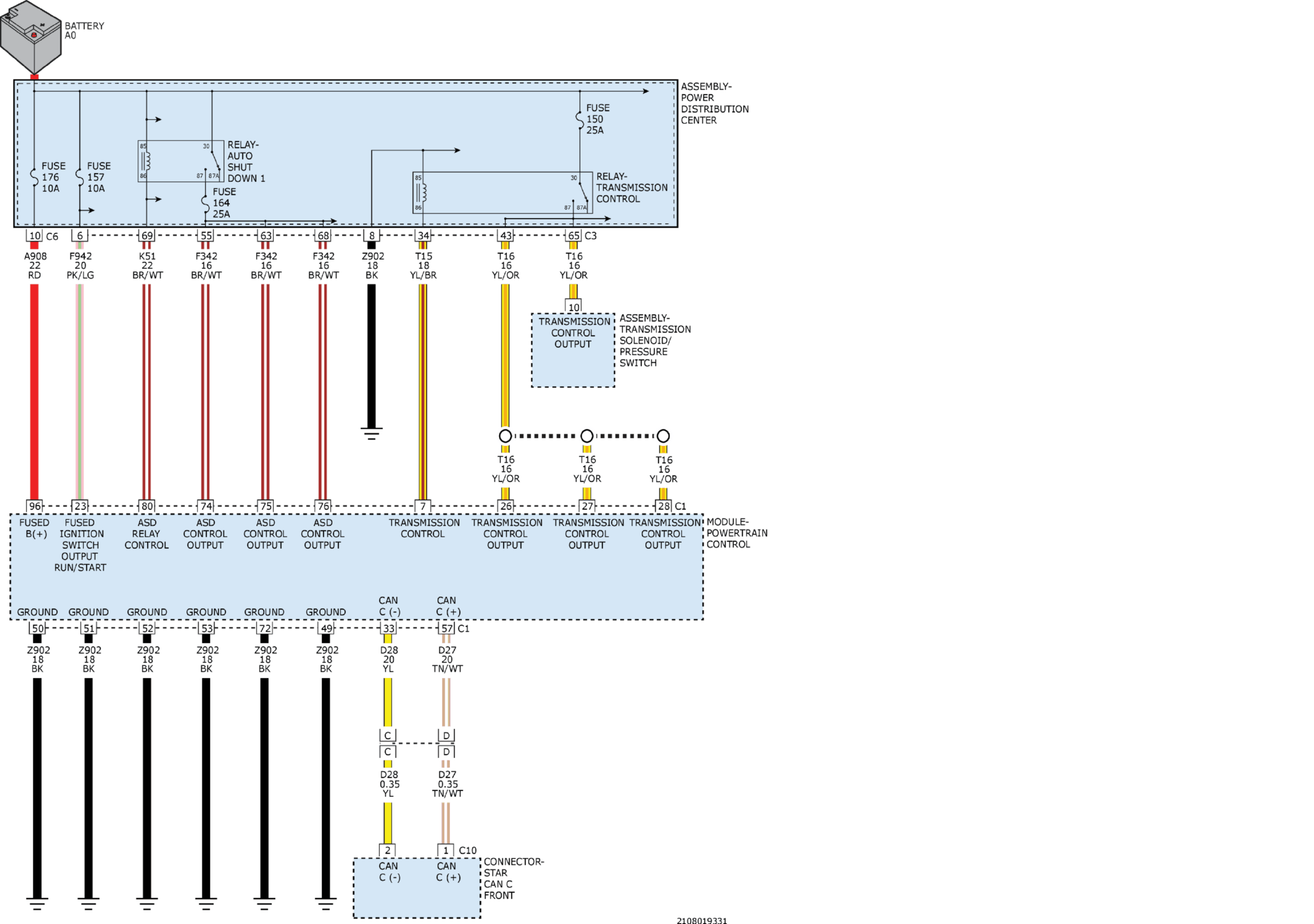

Fig 1: PCM Circuit Schematic

Courtesy of CHRYSLER GROUP, LLC
