2.0L TD (2 Bolt)

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

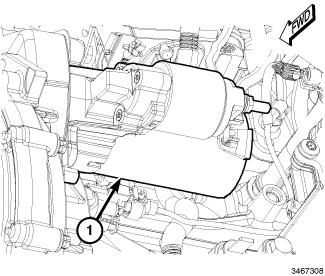

Fig 1: Starter
GC0148028Courtesy of CHRYSLER GROUP, LLC
  1. Install the starter (1).
  2. Install the upper mounting bolt and upper stud bolt.

    Tighten to 27 N.m (20 Ft. Lbs.).

  3. Install the harness bracket on to the upper starter stud bolt.
  4. Install the upper starter mounting stud nut.

    Tighten to 10 N.m (7 Ft. Lbs.).

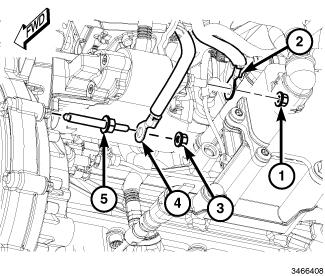

    Fig 2: B+ Cable Retainer, B+ Cable, Lower Starter Mounting Stud Nut, Stud Mounting Bolt & Ground Cable
    GC0148027Courtesy of CHRYSLER GROUP, LLC
  5. Install the lower starter stud mounting bolt (5).
  6. Position the ground cable (4) on the lower stud mounting bolt (5) and install the stud nut (3).

    Tighten to 10 N.m (7 Ft. Lbs.).

  7. Connect the solenoid connector to the starter.
  8. Install the starter B+ cable (2) on the starter B+ stud.
  9. Install the starter B+ cable retainer (1).

    Tighten to 10 N.m (7 Ft. Lbs.).

    Fig 3: Engine Belly Pan & Fasteners
    GC0147566Courtesy of CHRYSLER GROUP, LLC
  10. Install the engine belly pan.
  11. Connect the negative battery cable.
