Module, Compass: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

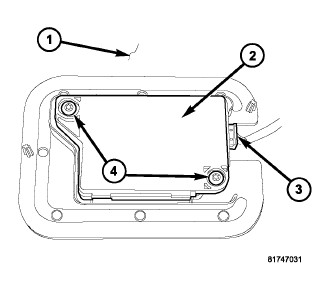

Fig 1: Identifying Remote Compass Module
GC0085981Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Partially remove the headliner (1) to gain access to the Remote Compass Module (RCM) (2). Refer to HEADLINER, REMOVAL .
  3. Disconnect the RCM electrical connector (3).
  4. Remove the RCM fasteners (4).
  5. Remove the RCM (2) from the vehicle.
