Cluster Mask, Hood And Lens

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

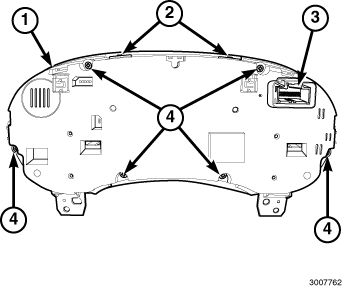

Fig 1: Six Screw, Cluster Housing & Integrated Latches
GC0147652Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the instrument cluster from the instrument panel.
  3. Remove the six screw (4) that secure the hood and mask to the cluster housing (1).
  4. Working around the perimeter of the cluster housing, disengage the integrated latches (2) that secure the cluster mask to the cluster housing.
  5. Remove the cluster mask from the face of the instrument cluster.
    NOTE:

    The lens assemblies for this vehicle can be serviced separately from side to side.

  6. To remove the lens and hood assemblies, disengage the integrated latches that secure the assembly to the cluster housing, and remove.
