Instrument Panel

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

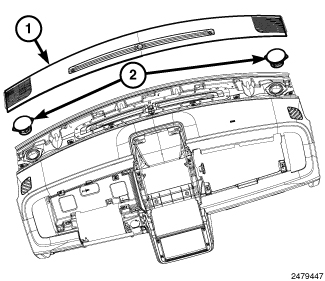

Fig 1: Speaker
GC0139116Courtesy of CHRYSLER GROUP, LLC
  1. Install the speakers (2) and connect the electrical connector.
  2. Install the mounting fasteners.
  3. Install the defroster grille (1). Refer to GRILLE, DEFROSTER, INSTALLATION .
  4. Connect the battery negative cable.
